Working with 2D Objects

GeoSWMM allows you to edit the properties of 2D model objects in several ways. The property editor can be opened in one of the following ways:

Single Object Property Editor

1. Clicking on the edit button (


   ) for a selected 2D object in the SWMM data browser

2. Double-clicking on a single object name in the SWMM data browser

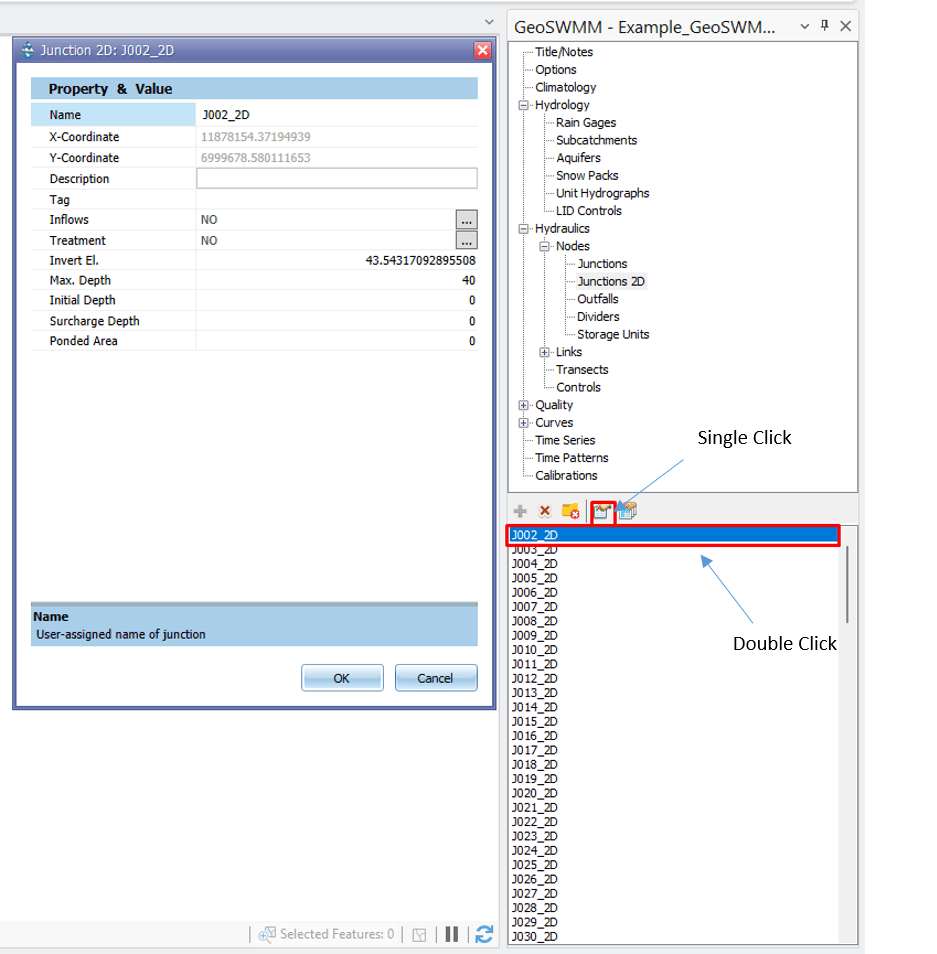

Fig.165: Property Editor for Single 2D Object

Grid View Editor

1. Clicking on the grid editor button (


   ) in the SWMM data browser

2. Double-clicking on the 2D object category (e.g. Junction_2D) in the GeoSWMM Object Panel

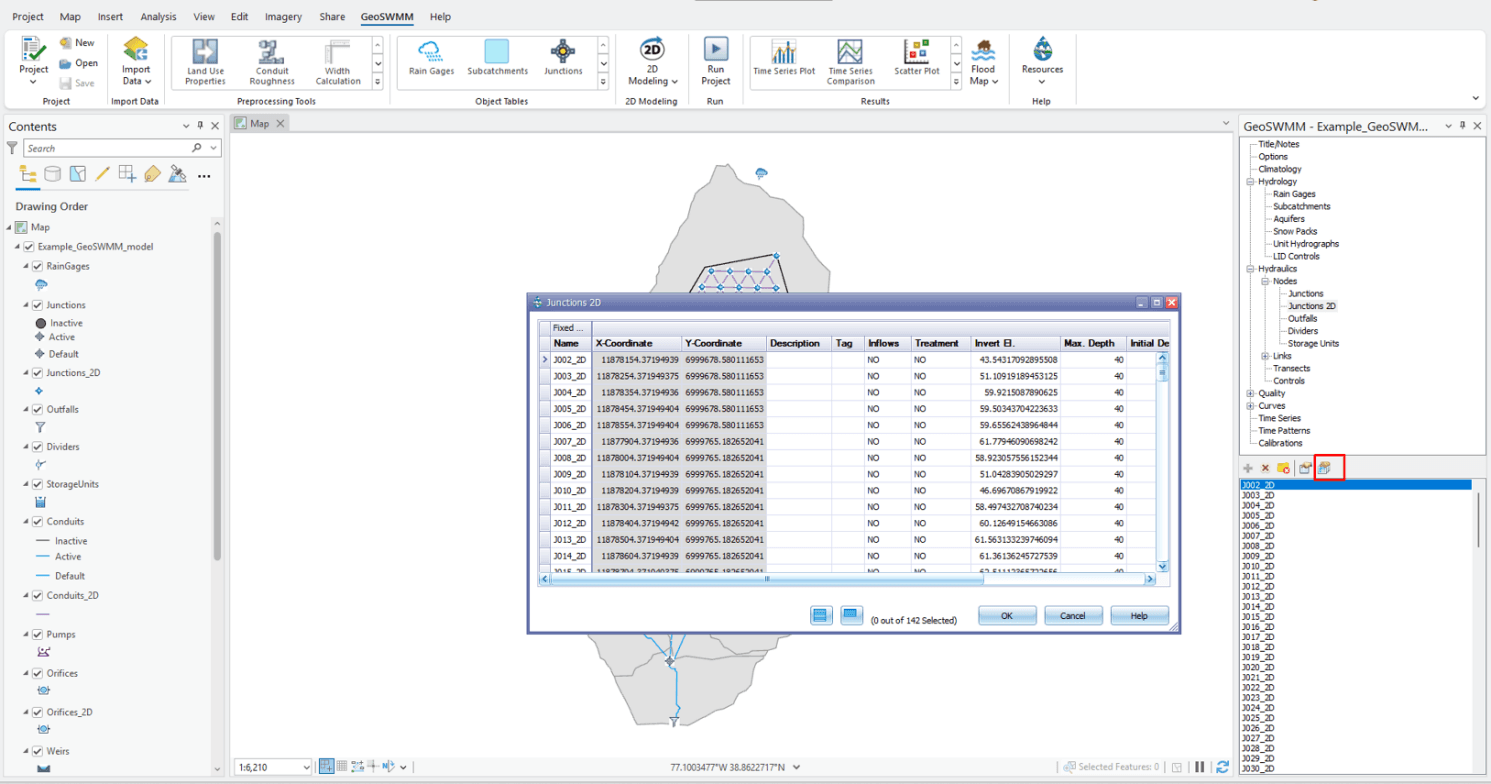

Fig.165: Property Editor in Grid View
