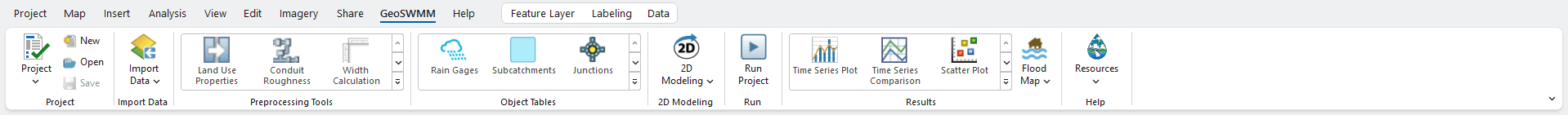

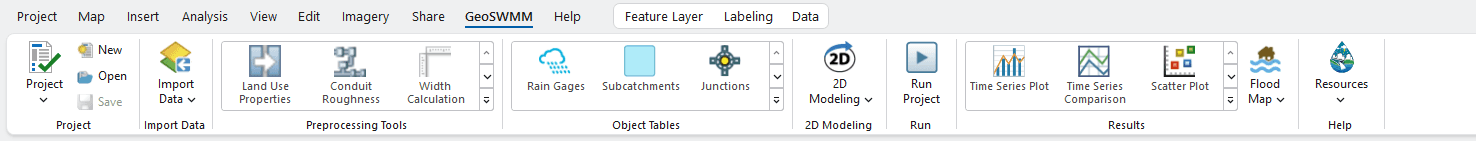

GeoSWMM Menu

Project Menu

Tool Icon

Tool Name

Function

New

Creates a new GeoSWMM project geodatabase.

Open

Opens an existing GeoSWMM project geodatabase.

Save

Saves the changes made in a GeoSWMM project and stores the information in an existing geodatabase.

Save As

The changes made to the project will be saved as another project defined by the user.

Save A Copy

In this case, any changes made to the geodatabase after opening is not saved. Rather only a copy of the previous version is saved in the user defined path.

Close

Closes a GeoSWMM project and removes it from ArcGIS Pro map TOC.

Reload

Reloads the geodatabase contents into the GeoSWMM project data.

Project Details

Contains the summary of the input information of the SWMM model.

Export

Exports the model input files for EPA-SWMM 5.1.

Help

Contains GeoSWMM User Manual and the software information.

Recent Projects

Recent Projects

Shows a list of the last 5 GeoSWMM projects accessed by the user in ArcGIS Pro.

Settings

Project Defaults

Shows a set of default parameters and values for the SWMM model as the initial input. These values are assigned to the model components unless overridden by the user input.

Numeric Precision

Shows the setting for the numeric precision in the simulation results.

Show/Hide GeoSWMM Contents

Displays the GeoSWMM project tree in a dock able window in ArcGIS Pro.

Import Data

Import Layer

Lists the objects layer available in a GeoSWMM model. It displays the property of each layer in object panel.

Import EPASWMM Input File

Creates model from EPA SWMM input (.inp) file.

Object Table

Object Table

Lists the object tables available in a GeoSWMM model. It displays the property grid of the user specified model object.

Tools

Tool Icon

Tool Name

Function

Watershed Delineation Tool

Segment and delineate catchment boundaries and creates natural streamline and watershed outlets.

Link Inlet-Outlet Assignment

Assigns inlet and outlet of conduit layers

GeoSWMM Network Analysis Tool

Checks the data errors present in the model conduit and node layers.

Slope Calculation Tool

Calculates average surface slope for the model subcatchments.

Imperviousness Calculation Tool

Calculates the average imperviousness for the model subcatchments.

Characteristic Width Calculation Tool

Estimates the characteristic width for the model subcatchments.

Land Use Properties Processing Tool

Reclassifies source land use data and calculates Manning's Roughness and the maximum depth of the depression storage for the model subcatchments.

Conduit Roughness Processing Tool

Assigns a standard or the user specified roughness values to the model conduits.

Extract Elevation Data

Extracts elevation data from contours.

Simulation and Post Processing Tools Menu

Tool Icon

Tool Name

Function

Run

Executes model simulation.

Generate Flood Map

Generate flood boundary layer and flood depth raster.

2D Modeling

A collection of tools which streamline the process from define boundary condition to creation of the required layers and attributes for 2D modeling sequentially.

Enable 2D Modeling

Enables 2D modeling at the same GeoSWMM 1D project workspace.

Define Boundary Layer

Assists in defining; e.g. create, import, edit boundary layer along with hydrologic and hydraulic parameters within which all 2D layers generate.

Create 2D Nodes

Generates 2D node points using the attributes assigned in Boundary Layer.

Create 2D Layers

Creates 2D network, i.e., Junction, Conduits, Cell taking into account obstructions, boundary layer extent, and generated 2D nodes and populates corresponding attributes necessary for 2D model simulation.

Connect 1D-2D

Connects 1D network with 2D network based on available options, i.e., weir, orifice, direct connection.

Generate Flood Raster

Creates Max. Water Surface Elevation Raster and Max. Flood Depth Raster based on 2D model results at a desired workspace.

Result

Status Report

Shows the simulation summary results.

Summary

Shows and exports the simulation summary results in tabular format.

Graphs

Statistics

Compute summary statistics, frequency analysis, for the entire set of event values.

View Time Series Plot

Generates time series graphical chart for the analysis results.

Time Series Comparison

Generates a time series comparison chart for two analysis variables.

View Scatter Plot

Generates a scatter plot for two analysis variables to show their statistical relationship.

View Profile Plot

Generates water surface elevation profiles along the connected path (links) between two nodes at a specific time. It shows the temporal variation of water depths. It also shows the water surface profile with ground elevation data.

Tables

Result by Object

Shows a table containing analysis results for a user specified model object.

Result by Variable

Shows a table containing analysis results for a user specified model variable.
