Export to EPASWMM

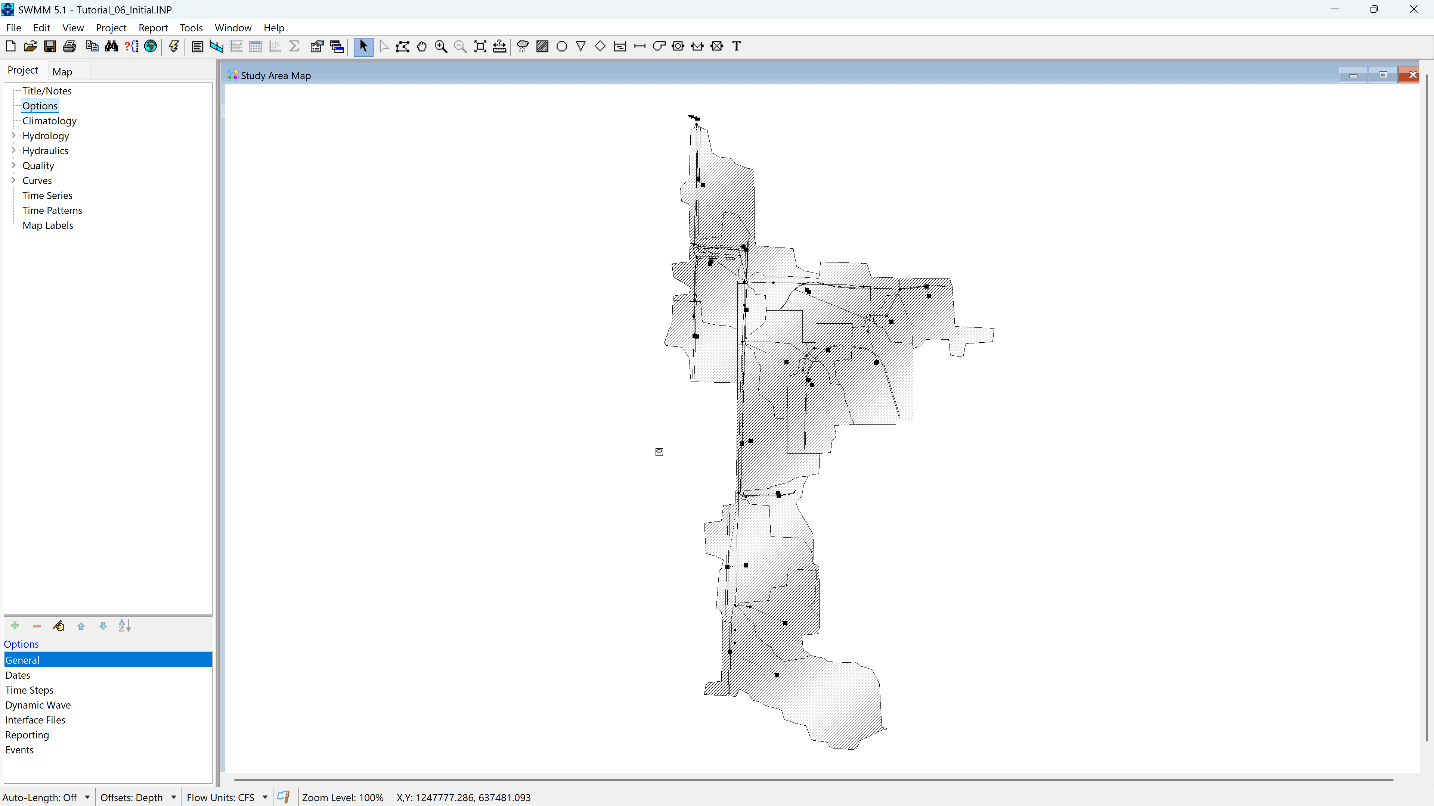

Model input file for subsequent simulation and analysis in EPASWMM 5.1 can be exported from the GeoSWMM project. Export option provided in the Project menu allows users to do so. Notice that two input files, one for Initial scenario and the other for Final scenario, have been provided in EPASWMM folder as mentioned in Table 2.1. These files have been generated from the GeoSWMM projects- Tutorial_06_Initial.gdb and Tutorial_06_Final.gdb respectively. When opened in EPASWMM 5.1, the model for the developed site should appear as the following Figure 2.13.
