Export to EPASWMM

Model input file for subsequent simulation and analysis in EPASWMM 5.1 can be exported from the GeoSWMM project. Export option provided in the File Menu allows users to do so. Notice that an input file has been provided in EPASWMM folder as mentioned in Table 2.1. This file has been generated from the GeoSWMM project-Tutorial_08.gdb. When opened in EPASWMM 5.1, the model should appear like the following Figure 2.12.

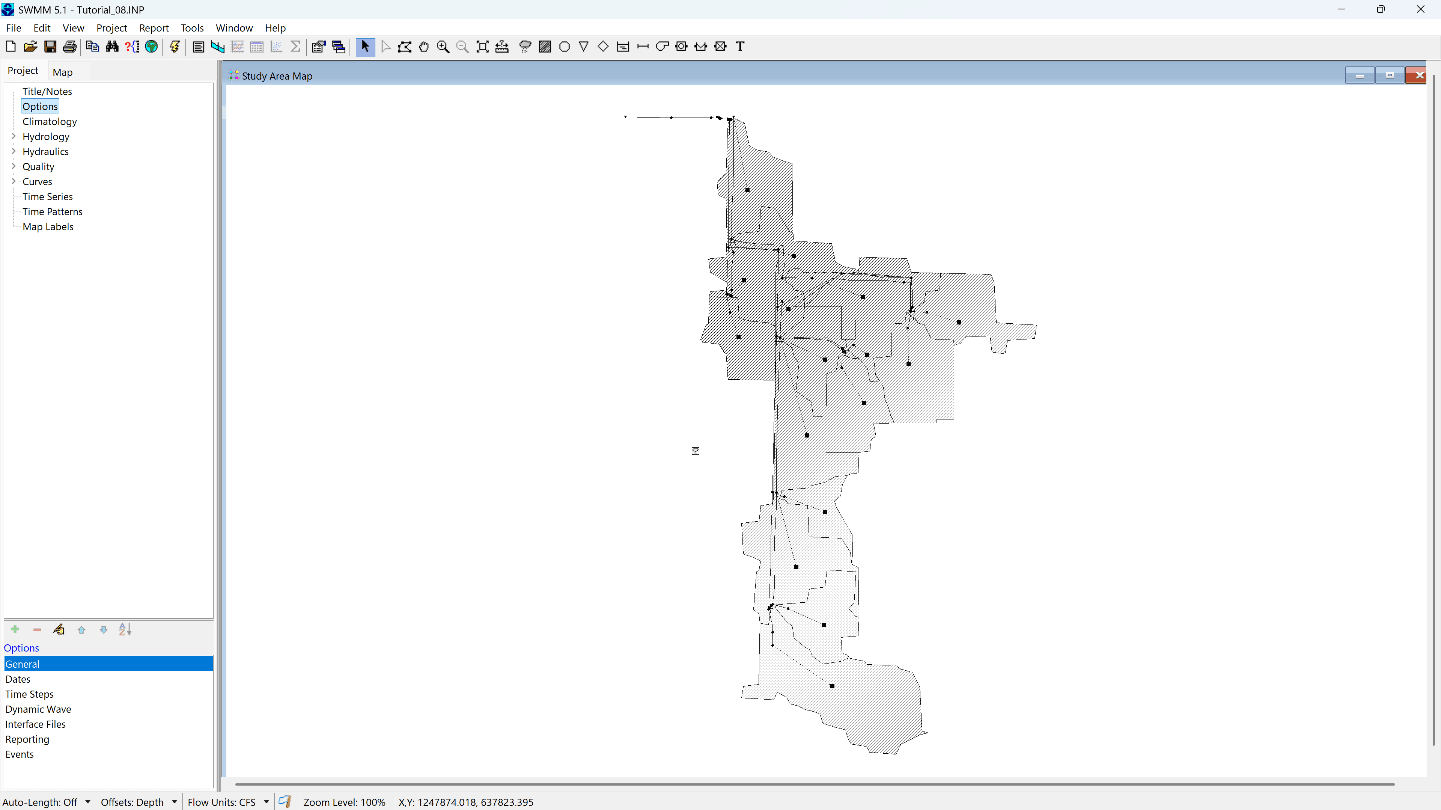

Figure 2.12 : Model Layout in EPASWMM
Figure 2.12 : Model Layout in EPASWMM
