C.13 LID Group Editor

The LID Group Editor is invoked when the LID Controls property of a Subcatchment is selected for editing. It is used to identify a group of previously defined LID controls that will be placed within the subcatchment, the sizing of each control, and what percent of runoff from the non-LID portion of the subcatchment each should treat.

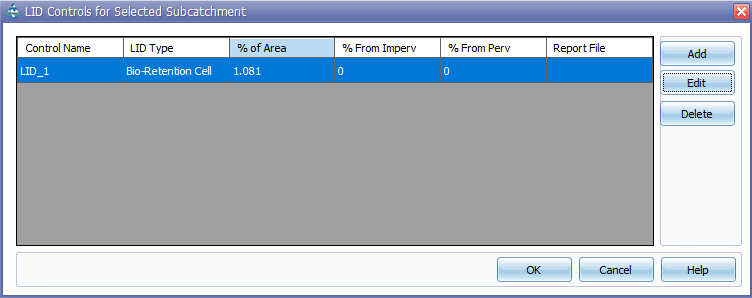

The editor displays the current group of LIDs placed in the subcatchment along with buttons for adding an LID unit, editing a selected unit, and deleting a selected unit. Selecting Add or Edit will bring up an LID Usage Editor where one can enter values for the data fields shown in the Group Editor.

Note that the total % Of Area for all of the LID units within a subcatchment must not exceed 100%. The same applies to % From Impervious. Refer to the LID Usage Editor for the meaning of these parameters.
