View Status Report

GeoSWMM generates a summary of the overall model simulation. To view this status report:

1.     Go to the GeoSWMM toolbar and click on the Status Report () button. It will display the status report like the following figure.

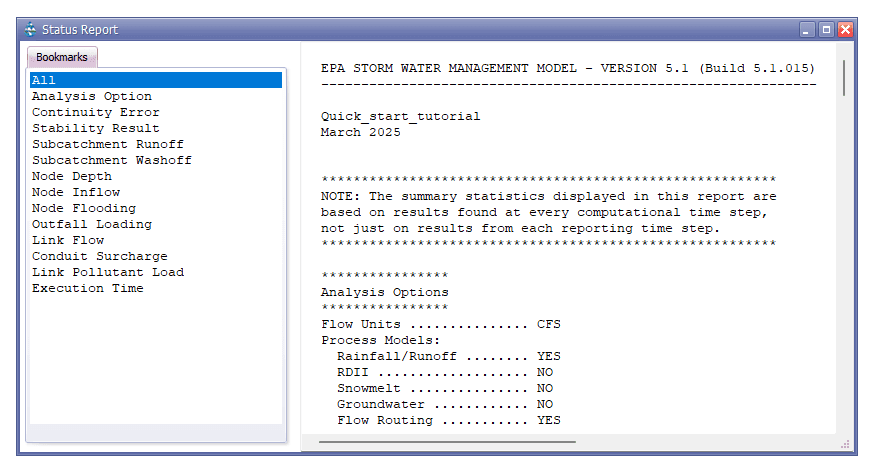

Fig 26: Simulation status report

2.     You can see the summary of simulation states at different time steps. You can browse through the results by scrolling down the cursor. Note that the extent of the status report details depends on the choice made in the Hydraulics page in Options editor.
