Visual Objects

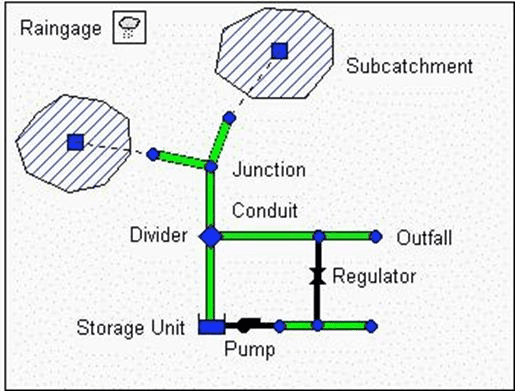

Fig.48: Example of Physical Objects used to model a Drainage System (Source: User Manual for EPA-SWMM 5.1)

Fig. 48 depicts how a collection of GeoSWMM’s visual objects might be arranged together to represent a stormwater drainage system. These objects can be displayed on a map in the GeoSWMM workspace. The following sections describe each of these objects.
