Viewing Results with a Graph

Analysis results can be viewed in different types of graphs. These graphs can be exported as images and the data can also be saved in the spreadsheet files. The following types of graphs can be generated from available simulation results.

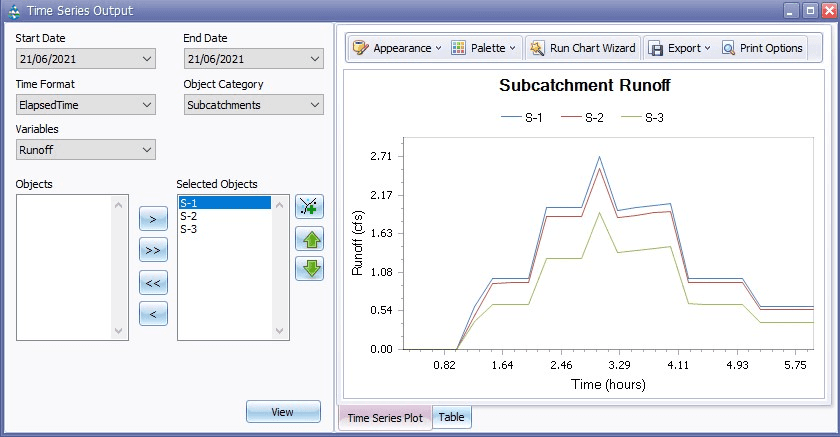

• Time Series Plot (Figure 10.3)

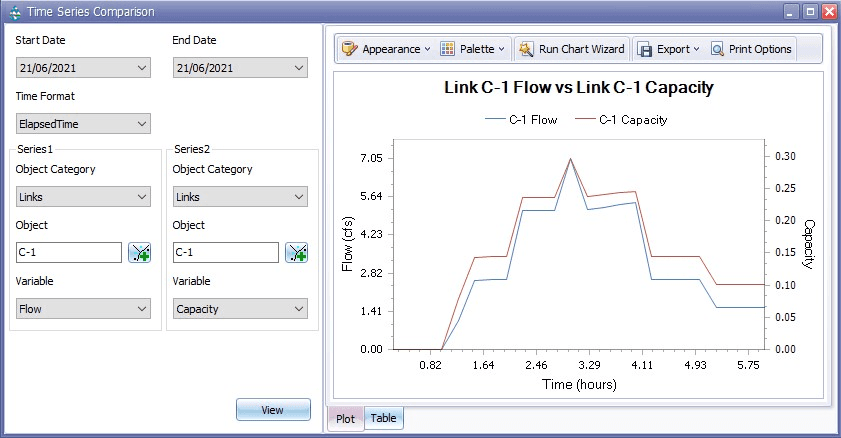

• Time Series Comparison (Figure 10.4)

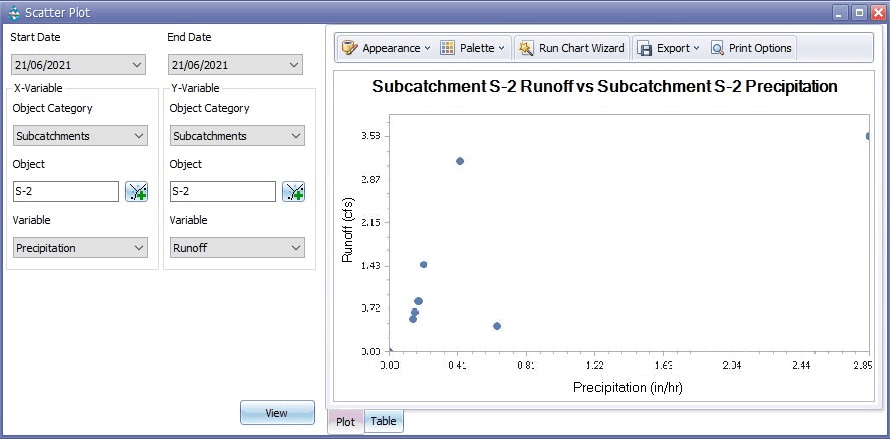

• Scatter Plot (Figure 10.5)

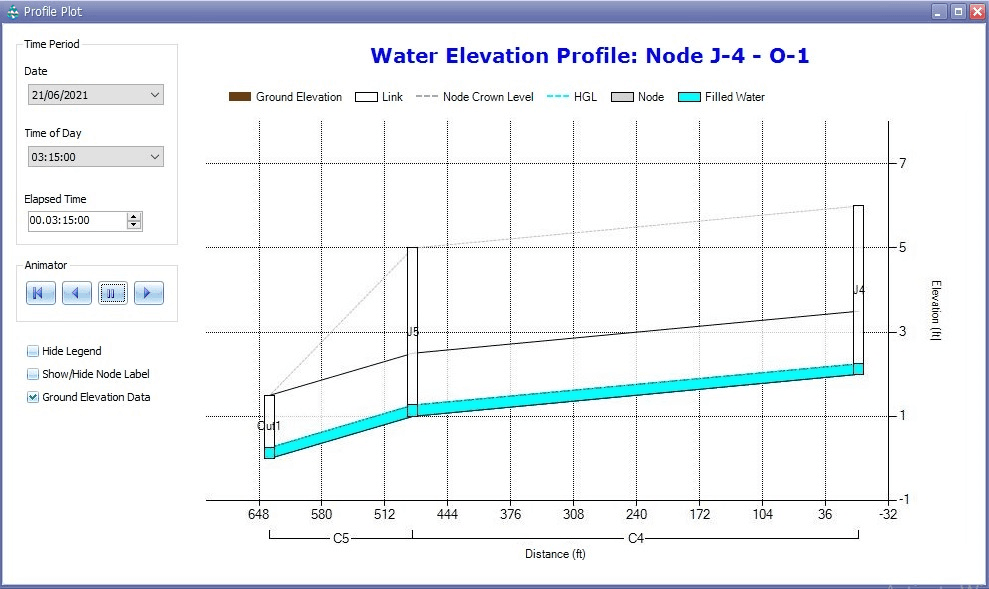

• Profile Plot (Figure 10.6)

See View Model Results descriptions to work with these plots.
