Viewing Model Results

Viewing Results with a Table

Time series results for selected variables and objects can be viewed also in a tabular format in GeoSWMM. The user can view the result table in two ways:

  • Using the Tabular Result by Object option by clicking on the (Results by Object) button (Figure 10.8 ).
  • In the Time Series Plot or the Scatter Plot option where the user can also view the plotting data in a table (Figure 10.9).

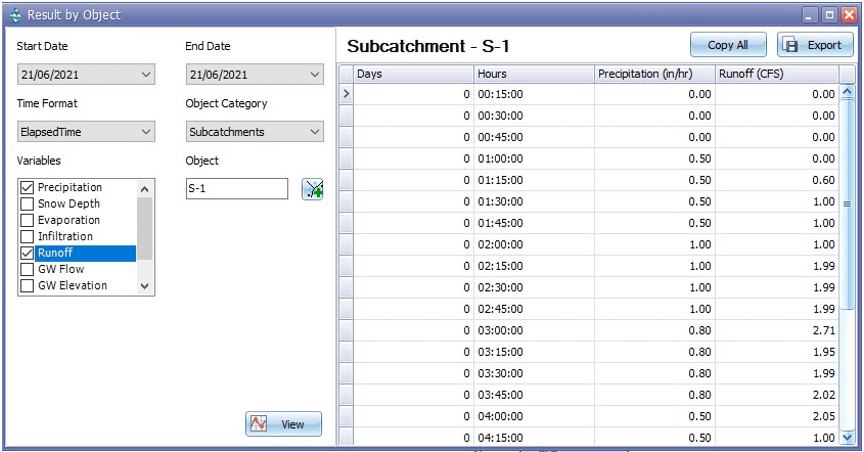

Figure 10.8 : Tabular Result by Object
Figure 10.8 : Tabular Result by Object

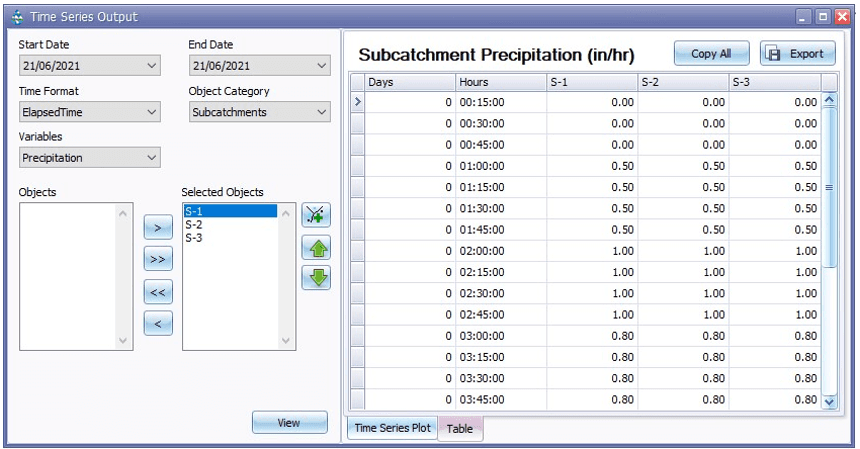

Figure 10.9 : Tabular result in the Time Series Plot manager
Figure 10.9 : Tabular result in the Time Series Plot manager
