Quick Start Tutorial

Study Area Description

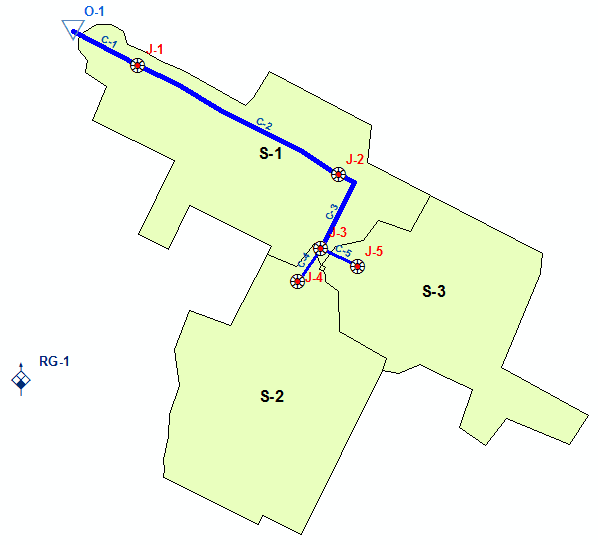

Fig 2.1 shows the layout of a drainage system of a residential area. There are three subcatchments, four storm-water conduits, and four conduit junctions in it. Outlet nodes for subcatchments S-1, S-2 and S-3 are J-1, J-4 and J-5 respectively. After collection of storm-water from the system, water is finally drained to a stream at outfall O-1. The nearest and representative precipitation measuring gage for the system is RG-1.

Figure 2.1 : Example study area
Figure 2.1 : Example study area

Table 2.1 shows physical information summary of the drainage system of the study area, the data inventory of the physical elements of the system. This information is processed using GIS. More detailed network information is available in the object shape files as listed in the following section.

Table 2.1 : Physical information summary

Subcatchment Properties

Subcatchment ID

Area (acres)

Average Surface Slope (%)

Average Surface Imperviousness (%)

Outlet Node ID

S-1

4.18

1.43

47.25

J-1

S-2

4.03

3.13

46.10

J-4

S-3

3.31

2.20

38.30

J-5

System

11.52

2.25

44.28

O-1

Conduit Properties

Conduit ID

Inlet Node ID

Outlet Node ID

Material

Cross-section Type

Diameter (ft)

Length (ft)

C-1

J-1

O-1

PVC

Circular

1.5

154.47

C-2

J-2

J-1

Concrete

Circular

1.5

481.80

C-3

J-3

J-2

PVC

Circular

1.5

190.78

C-4

J-4

J-3

PVC

Circular

1.0

87.48

C-5

J-5

J-3

PVC

Circular

1.0

86.27


Total Length

1000.80

Junction Properties

Junction ID

Invert Elevation (ft)

J-1

480.48

J-2

494.43

J-3

501.83

J-4

537.64

J-5

526.29

Outfall Properties

Outfall ID

Invert Elevation (ft)

O-1

470.57
