Map Visualization
There are two ways to visualize the 2D flood map,
-

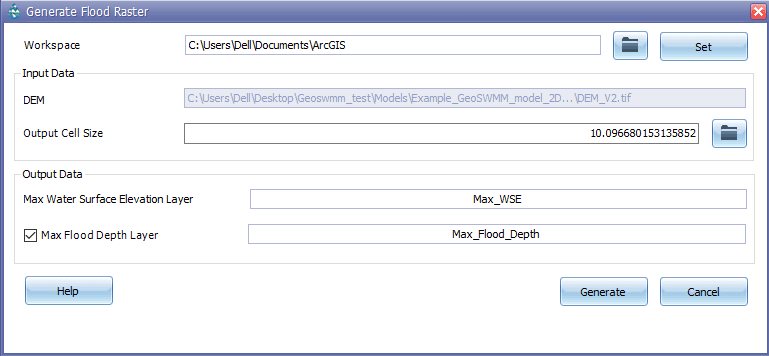

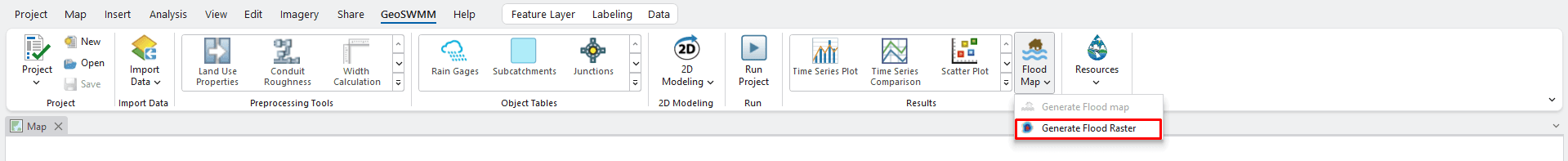

After the 2D model simulation is complete, save the GeoSWMM project and maximum flood water depth map will be generated immediately
-
From the ArcGIS Pro layer properties
User can view and customize the 2D flood result from the 2D cell layer properties in Arc map. Steps are:
-
Right click on the Cells 2D layer in the SWMM geodatabase in the ArcGIS Pro map ToC.
-
Go to symbology
-
In Primary Symbology, select unique values and in Field 1assign the value “MAXDEPTH”/ “MAXWSE”/ “MAX VALOUME”
-
Classify the values in appropriate range and color ramp
-
Click OK
To show 2D flood result field’s attribute value in the map:
-
Right click on the Cells 2D Layer in the SWMM geodatabase in the ArcGIS Pro map ToC
-
Go to “Labeling Properties”
-
Select the Label field “MAXDEPTH”/ “MAXWSE”/ “MAX VALOUME” from fields
-
Click Apply
