Curve Editor

Curve objects are used to describe a functional relationship between two parameters. The following types of curves are available in GeoSWMM:

  • Storage curve describes how the surface area of a Storage Unit node varies with water depth.
  • Shape curve describes how the width of a cross-sectional shape varies with the height for a Conduit link.
  • Diversion curve relates diverted outflow to total inflow for a Flow Divider node.
  • Tidal curve describes how the stage at an Outfall node changes by hour of the day.
  • Pump curve relates flow through a Pump link to the depth or volume at the upstream node or to the head delivered by the pump (Fig.124).
  • Rating curve relates flow through an Outlet link to the freeboard depth or head difference across the outlet.
  • Control curve determines how the control setting of a pump or flow regulator varies as a function of some control variable as specified in a Modulated Control rule.

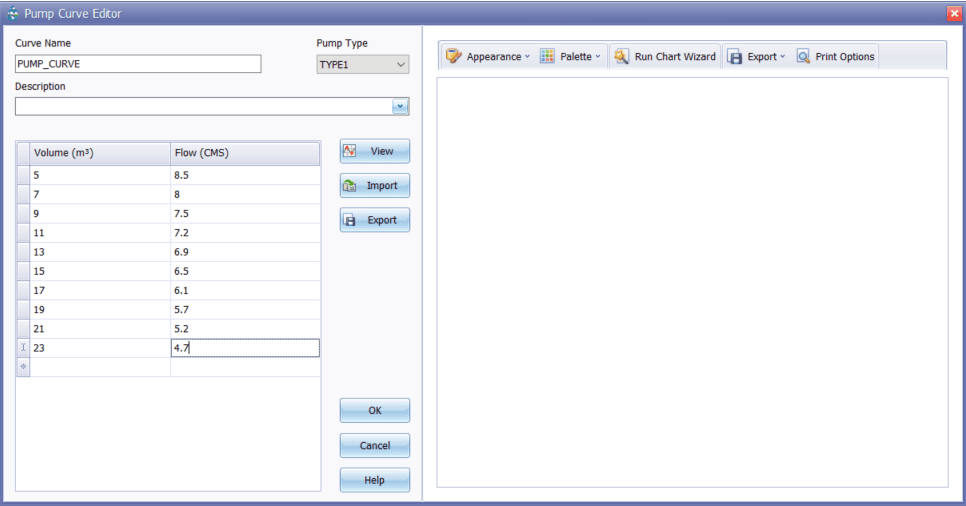

Fig.124: Pump Curve Editor window

Fig.124: Pump Curve Editor window

Fig.124: Pump Curve Editor window



GeoSWMM enables the user to utilize different formats of data, such as text, CSV, PRN, etc., for import and use in the curve editor.
